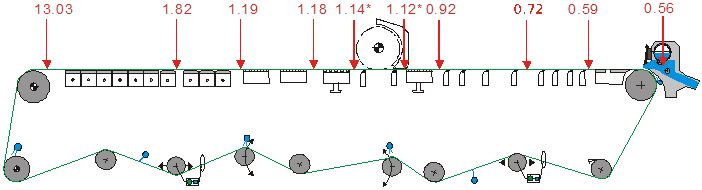

Fourdrinier Paper Machine

We offer solutions of forming fabrics and dryer fabrics in fourdrinier paper machine, matching the needs of your forming and dryer section configurations, based on machine speed, wet end chemistry, pulp grades, paper types, paper grammage and quality, etc. Please contact us for more details!

Forming Fabrics

For forming fabrics in fourdrinier board machine, the SSB triple-layer forming fabric is especially recommended.

    1. SSB Triple-layer Forming Fabric
    2. SSB Triple-layer Forming FabricThis compact design plain woven by double warp and two wefts provides a very high fiber support index, resulting in maximum planarity, smoothness, retention and minimum wire mark. Faster production is also guaranteed with enhanced drainage capability coming from the unique structure of this design. Optimum life potential can be achieved by tailor-made wear-side wefts in terms of diameters, density, and ratio (1:1, 2:1 and 3:2 available) .
      • Smoother and more printable surface properties provided by the very fine sheet-side surface compared to older designs
      • Improved retention and reduced wire marks from better sheet support of this structure
      • Excellent drainage and high potential life thanks to the open structure and dimensional stability of this unique design
      • Consistently accurate CD moisture profile delivered by the SSB triple-layer structure
Dryer Fabrics

To satisfy your needs for air permeability in fourdrinier board machine, we offer diversified dryer fabric products.

    1. 1.5-layer Dryer Fabric (Round Yarn)
    2. 1.5-layer Dryer Fabric (Round Yarn)1.5-layer dryer fabric (round yarn) is of high air permeability (500-750 CFM), suitable for all paper grades at industrial level. Comprised of high hydrolysis resistant material, it is especially durable in the face of challenges posed by heat and steam. This weave structure delivers high thermal transfer, dimentional stability, low air carrying, excellent cleanliness and strong seam.
    1. 2-layer Dryer Fabric (Round Yarn)
    2. 2-layer Dryer Fabric (Round Yarn)Compared to 1.5-layer design, the 2-layer one allows for the seamless construction of strength, on top of several highlights seen in 1.5-layer design:
      • Long potential life guaranteed from high hydrolysis resistant material comprised
      • Efficient drying due to the weave structure
      • Wide application of high air permeability (500-750 CFM) suitable for all paper types
    1. Single Warp Dryer Fabric (Flat Yarn)
    2. Single Warp Dryer Fabric (Flat Yarn) Single warp dryer fabric (flat yarn) is a time-tested design with air permeability ranging between 160-750 CFM. On top of high resistance again wear, the flat monofilament also offers smooth and wide contact area, thus high thermal transfer efficiency. The flat machine direction yarn construction allows excellent cleanliness. This pattern leaves almost indistinguishable seam mark, yet, it promises quick and easy seaming with excellent strength. Use our flat yarn single warp dryer fabric for cardboard production, you can have quality products as well as extended fabric durability.
    1. Double Warp Dryer Fabric (Flat Yarn)
    2. Double Warp Dryer Fabric (Flat Yarn) Flat yarn double warp dryer fabric exceeds the demands for cardboard making. A flat weave structure gives the largest possible contact area with low to medium air permeability (90-375CFM). Therefore, it is easy to clean, efficient in drying and resistant to wear. The double-layer construction allows smooth surface and strong seaming that is identical to the rest of the fabric, leaving no marking on the product. This particular design is less stretchable and rather stable in structure, underpinning further durability.

Contact us to discover more customer success stories.

We have an array of experienced experts stand by to provide professional service in fabric application, paper production, technical support, to end product sales.

  • Our experts offer concrete solutions which will fit the specific requirements of the forming and dryer section configuration, machine speed, pulp grades, paper types, paper grammage and quality, etc.
  • Our technical support team with extensive knowledge and field experience delivers services including not just mere maintenance, but also tailored optimization measures.
  • Our highly qualified sales personnel led by experts are ready to answer any questions you may have regarding fabric specs, application, technical details, customer success story and trainings on various subjects such as safety and fabrics application. etc.

We are committed to working in close cooperation with you in order to promote first-class paper machine clothing!

For more information?
Get in Touch
Our Products
    1. Forming Fabrics
    2. We offer 4 kinds of forming fabrics for various applications in the forming section of paper machines.
      2.5-layer forming fabrics (8-shed and 16-shed available) and SSB triple-layer forming fabrics (5-shed, 8-shed and 10-shed available).
      Individual solutions are proposed to match your conditions and demands, thus reaching higher efficiency for your operation. To work out the best solutions, please contact us with your demands regarding fabric structure, dewatering elements layout, pulp grades, wet end chemistry, machine speed, paper types, and paper grammage, etc.       More
    1. Dryer Fabrics
    2. We offer 4 kinds of dryer fabrics for various applications in the dryer section in paper machines.
      Round yarn 1.5-layer dryer fabric (400-500CFM), round yarn 2-layer dryer fabric (500-750 CFM), flat yarn single warp dryer fabric (160-750 CFM) and flat yarn double warp dryer fabric (90-375 CFM).
      We have different options suitable for your dryer section, positions, paper grades, paper grammage and machine speed.      More
