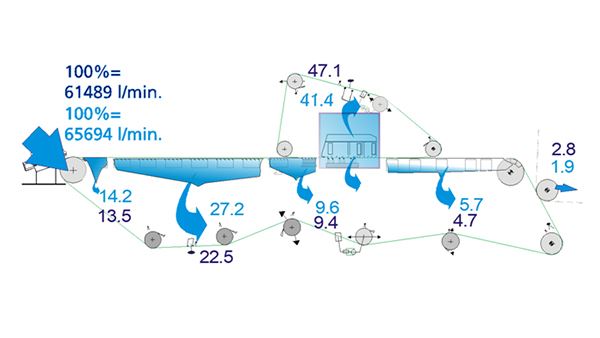

High Speed Hybrid Former Paper Machine

Please contact us with your expectations and we will provide you the most satisfying forming and dryer fabric solutions for high speed hybrid former paper machines based on the machine configuration, machine speed, wet end chemistry, pulp grades, paper types, paper grammage and quality, etc.

Forming Fabrics

SSB triple-layer sheet support and binding design (warp ratio 1:1) rises to the challenges put forward by the high speed hybrid former paper machine. Different weft ratios are provided (1:1 /2:1 /3:2).

    1. SSB Triple-layer Forming Fabric
    2. SSB Triple-layer Forming FabricThis forming fabric with sheet support binding structure delivers ideal flat and smooth surface with rich supporting points on the sheet side. With our SSB triple-layer forming fabrics, you can have high retention, fine surface of end product and minimum wire mark.
Dryer Fabrics

Varying demands for air permeability can be met with our diversified dryer fabric products including round yarn 1.5-layer dryer fabric (400-500CFM), round yarn 2-layer dryer fabric (500-750 CFM), flat yarn single warp dryer fabric (160-750 CFM) and flat yarn double warp dryer fabric (90-375 CFM).

    1. 1.5-layer Dryer Fabric (Round Yarn)
    2. 1.5-layer Dryer Fabric (Round Yarn)1.5-layer dryer fabric (round yarn) is of high air permeability (400-500CFM), suitable for all paper grades at industrial level. Comprised of high hydrolysis resistant material, it is especially durable in the face of challenges posed by heat and steam. This weave structure delivers high thermal transfer, low air carrying, excellent cleanliness and strong seam.
    1. 2-layer Dryer Fabric (Round Yarn)
    2. 2-layer Dryer Fabric (Round Yarn) Compared to 1.5-layer design, the 2-layer one allows for the seamless construction of strength, on top of several highlights seen in 1.5-layer design:
      • Long potential life guaranteed from high hydrolysis resistant material comprised
      • Efficient drying due to the weave structure
      • Wide application of high air permeability (500-750 CFM) suitable for all paper types
    1. Single Warp Dryer Fabric (Flat Yarn)
    2. Single Warp Dryer Fabric (Flat Yarn) Single warp dryer fabric (flat yarn) is a time-tested design with air permeability ranging between 160-750 CFM. It is also recommended in the drying section of high speed hybrid former paper machine. The thin single warp system brings compact and even sheet surface, allowing good runnability, efficient on-the-machine cleaning and quick seaming. The flat monofilament is resistant to wear, and offers very high contact area for heat transfer with little wire mark left. Therefore, durability and drying efficiency are guaranteed.
    1. Double Warp Dryer Fabric (Flat Yarn)
    2. Double Warp Dryer Fabric (Flat Yarn) In addition to the benefits brought by the flat yarn, efficient drying, long lifetime, runnability and easy cleaning, extra improvement is secured on seam marking thanks to seam-less design formed by the double wrap.

Contact us to discover more customer success stories.

We have an array of experienced experts stand by to provide professional service in fabric application, paper production, technical support, to end product sales.

  • Our experts offer concrete solutions which will fit the specific requirements of the forming and dryer section configuration, machine speed, pulp grades, paper types, paper grammage and quality, etc.
  • Our technical support team with extensive knowledge and field experience delivers services including not just mere maintenance, but also tailored optimization measures.
  • Our highly qualified sales personnel led by experts are ready to answer any questions you may have regarding fabric specs, application, technical details, customer success story and trainings on various subjects such as safety and fabrics application. etc.

We are committed to working in close cooperation with you in order to promote first-class paper machine clothing!
