Paper Machine Clothing (PMC)
We have extremely experienced experts ready to work out the best solutions specifically for your paper machine clothing (PMC) of forming section and dryer section, machine speed, pulp grades, paper types, paper grammage and quality, etc. With our customized solutions, all your expectations can be satisfied regarding long service life, high retention, minimum wire mark, high dryness after forming section, efficient drying in dryer section and less mark from drying.
-

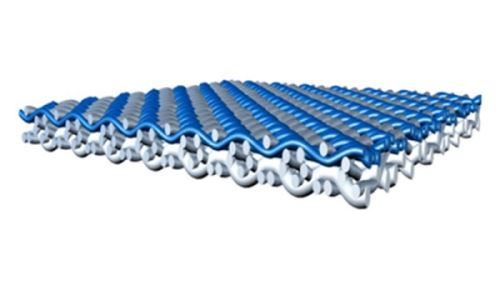

- SSB Triple-layer Forming FabricThe SSB forming fabric is recommended for use in forming sections of high speed paper machines for cardboard production. The very fine surface accomplished by our specially designed plain weave structure gives abundant supporting points.
-

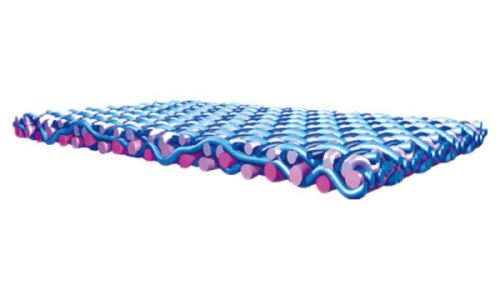

- 2.5-layer Forming FabricThe demands regarding high retention, tensile strength and life potential are fulfilled thanks to ample fiber support points formed by the increased ratio of weft density in the sheet-side (2:1 to wear-side).
-
- SSB Triple-layer Forming FabricThe SSB (sheet support binding) structure design with double MD yarns and two CD yarns plain woven on the sheet side forms a very thin structure allowing good runnability in high-speed paper machines.
-
- 2.5-layer Forming FabricDeveloped for the forming section in paper machinery for of printing and writing paper machines, our 2.5-layer forming fabric introduces high fiber support index (FSI) which results from an improved surface-yarn density. This allows better sheet-side smoothness as well as improved retention compared to a 2-layer design.
-
- SSB Triple-layer Forming FabricThis well-formed design pattern provides many benefits. To meet the extremely challenging requirements for excellent surface characteristics of specialty paper, we have constructed this SSB design that delivers maximum fabric side planarity provided by a high fiber support index (FSI).
-
- SSB Triple-layer Forming FabricWith a structure design of SSB (sheet support binding) consisting of double warp layers with two wefts, the paper side is woven in plain weave pattern which allows the best possible ratio between fiber support and dewatering capacity.
-
- 2.5-layer Forming FabricThe significant advantage provided by this 2.5-layer forming fabric is an increased weft density on the sheet side based on the weft ratio of 2:1. The advantages are higher fiber support index (FSI), mechanical retention and tensile strength.
-
- SSB Triple-layer Forming FabricThe 4-shed (or 5-shed type) structure used in the sheet-side allows sufficient drainage capacity, high bulk and long life potential.
-
- 2.5-layer Forming Fabric for Pulp ProductionThis type of paper machine clothing has a structure design of single warp and two weft layers (weft ratio 2:1), enabling improvements in various aspects.
-
- Single Warp Dryer Fabric (Flat Yarn)In addition to the high resistance against wear, the flat monofilament also offers smooth and wide contact area and thus high thermal transfer efficiency. The flat machine direction yarn (warp) construction allows excellent on-the-machine cleaning.
-
- Double Warp Dryer Fabric (Flat Yarn)A flat surface structure provides the largest possible contact area with low to medium air permeability. Therefore, it is easy to clean, efficient in drying and resistant to wear.
-
- Single Warp Dryer Fabric (Flat Yarn)Its compact design offers a smooth surface of the paper. High dimensional stability and a strong seam provided by the special construction fulfill the need for longer fabric life in the drying section.
-
- Double Warp Dryer Fabric (Flat Yarn)This no-seam-marking double layer design meets the expectation for a smooth surface of printing and writing paper. The seaming of the fabric onsite is easy and less time consuming.
-
- Single Warp Dryer Fabric (Flat Yarn)Less marking thanks to the good planarity secured by the weave structure, efficient thermal transfer and high wear resistance provided by the flat monofilament are the advantages of this design.
-
- Double Warp Dryer Fabric (Flat Yarn)Thanks to its double warp layer structure this design provides a very strong seam and long life potential;
-
- 1.5-layer Dryer Fabric (Round Yarn)The high hydrolysis resistant material of this design provides the optimum resistance to heat and hydrolysis degradation and therefore much more durability than regular material.
-
- 2-layer Dryer Fabric (Round Yarn)The high hydrolysis resistant material of this design is very suitable for dry and hot positions in the dryer section.
-
- Single Warp Dryer Fabric (Flat Yarn)The time-tested flat monofilament design provides a smooth surface, large contact area, good wear resistance and easy on-the-machine cleaning, by thus enabling improvements in marking, drying efficiency and durability.
-
- Double Warp Dryer Fabric (Flat Yarn)The flat yarn design of the dryer fabric has increased heat transfer efficiency and durability. This double warp construction adopted indistinguishable seam design, gives the smoothest possible surface, leaving no trace of marking. I have no idea at all of the sentence meaning!
We have an array of experienced experts stand by to provide professional service in fabric application, paper production, technical support, to end product sales.
- Our experts offer concrete solutions which will fit the specific requirements of the forming and dryer section configuration, machine speed, pulp grades, paper types, paper grammage and quality, etc.
- Our technical support team with extensive knowledge and field experience delivers services including not just mere maintenance, but also tailored optimization measures.
- Our highly qualified sales personnel led by experts are ready to answer any questions you may have regarding fabric specs, application, technical details, customer success story and trainings on various subjects such as safety and fabrics application. etc.
We are committed to working in close cooperation with you in order to promote first-class paper machine clothing!
